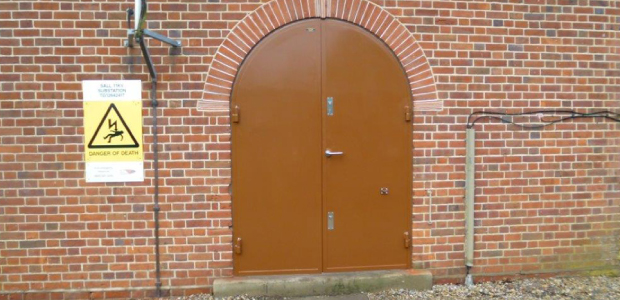

Standard Duty Doors

Standard Duty Doors

Gosport "Standard Duty" Doors are a cost effective solution to providing additional security in low risk installations.


Key Features
  • 2.5mm mild steel facing sheet100x40x2 ERW mild steel door chassis and mid rail
  • 100x40x2 ERW mild steel main frame
  • Gosport Low Maintenance Hinges (Gosport design and manufacture)
  • 3 No. 12mm diameter dogs to hinge side to prevent doors being lifted off the hinges.
  • Weather strip atop the main frame.
  • Galvanised sheet clad low-profile threshold (depending on application, section can be varied to suit).
  • Facing sheet overlap on lock side, and header with 6mm thick anti-pry bar on main frame to resist "jemmy bar" access.
  • All door chassis and main frame joints are fully welded, with the facing sheet stitch-welded on all sides.
  • Fixed to surrounds with 10mm diameter frame anchors.
  • Double door passive leaf secured by concealed stainless steel drop bolts (cannot be disengaged when doors are closed).




Configuration Options

Doors can be supplied:


  • Left or right handed.
  • Inward or outward opening.
  • With any combination of furniture. Please refer to our furniture options.
  • Single, double, top panel(s), side panel etc. Please refer to our configuration options (pdf).
  • With frame extensions (cheeks) or architrave to minimise/negate further works to finish the door opening.



Generally used by local authorities, utility companies and construction companies for storerooms, plant rooms, utility rooms, substations, public conveniences etc.
